For outputs of 1000 to 2000 Kr/hr

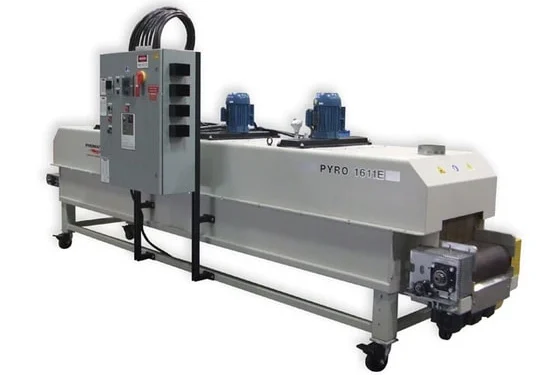

The mid-sized, electrically heated continuous tempering ovens deliver high outputs at high efficiency and are robust in construction. Energized by a combination of efficient heating and high-speed processing, these rapid tempering ovens and rapid stress relieving ovens ensure your process is competitive, with minimal maintenance for a worry-free operation!ā
Features & Specifications
| Model | P-1611E | P-1615E |
|---|---|---|
| Chamber size (WxLxH) | 405 x 3455 x 150 | 405 x 4575 x 150 |
| Overall size (WxL) | 1220 x 4575 | 1220 x 5795 |
| Capacity/hour | 310Ā°C, 1535kg |Ā 370Ā°C, 1210kg |Ā 420Ā°C,Ā 1000kg | 310Ā°C, 1895kg |Ā 370Ā°C, 1490kg |Ā 420Ā°C,Ā 1225kg |
| Power | 96 KW | 120 KW |
*Higher output available
Special Applications ā Ā Tempering of Induction Hardened Parts, Tempering of Crankshafts
Applications
Stress Relieving
Wire form products have a very wide variety of forms and applications. The uniform structure is a critical feature in every part of the product. In high-volume production, long heat-treatment time often causes bottlenecks in the production process. Reducing the time required for stress relief can make a huge difference. Pyro ovens provide the solution.
Tempering
High-speed tempering of axle shafts is another great example of Pyro precision tempering. Pyro installed three systems with two global manufacturers, producing over 1 million axle shafts annually. In one case, a mezzanine-mounted monorail trolley conveyor tempering oven at 100-minutes cycle time and 350 parts in-process were replaced with a floor-mounted 20-minute tempering process with only 70 parts in-process. Potential applications for this technology are almost infinite. Pyromaitre has made its mark on the automobile industry.
