Product

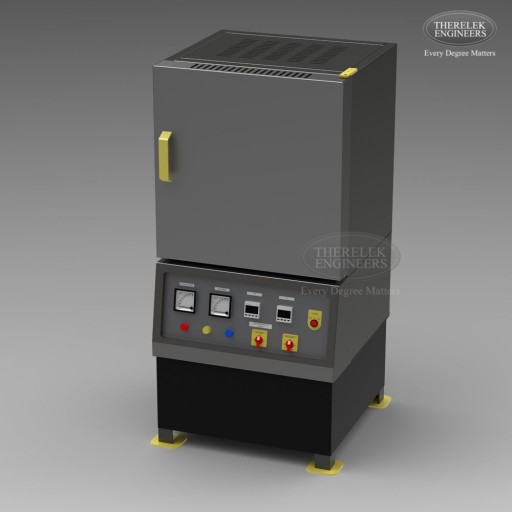

1400°C MUFFLE FURNACE

Description

  • The construction of the furnace is designed to have low skin temperature and the muffle is engineered to keep the heat inside.
  • Electrically heated with silicon carbide heating elements with high control accuracy and excellent temperature uniformity for the best results of your process and product.
  • All furnace gets a multi-point inspection & test before dispatch.
Need more details? Send enquiry!



Therelek uses Silicon Carbide Elements for 1400°C muffle furnace which comes with a range of standard features :

  • To define heating and cooling rates, PID programmable controller with precise temperature control is used.
  • Highly efficient thermal insulation using vacuum formed ceramic fibre boards and special light refractories with excellent thermal shock resistance
  • Standalone control console optional
  • User friendly guided door operation
  • Plug and play ready to use furnace
Technical Specifications
Model TES – 14
Operating Temperature 1400° C
Heating Elements molybdenum disilicide (MoSi2)
Atmosphere Options Air, Inert



Size
L (mm) 100 150 200 300
W (mm) 100 150 200 300
H (mm) 150 200 300 450
